A/C Compressor Clutch Relay Continuity Check

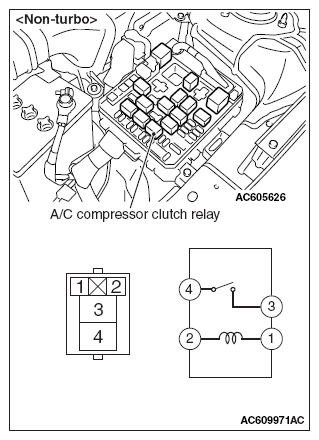

Fig 1: Identifying A/C Compressor Clutch Relay (Non-Turbo)
G09631200Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Battery voltage Tester connection Specified condition
Not applied 3 - 4 Open circuit
  • Connect terminal 2 to the positive battery terminal
  • Connect terminal 1 to the negative battery terminal
 3 - 4 Less than 2 ohms

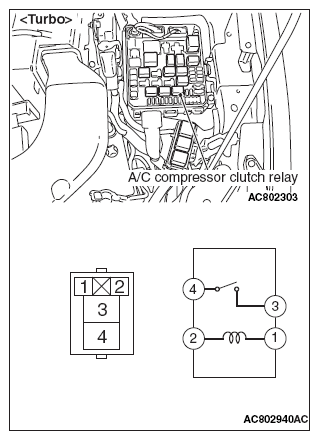

Fig 2: Identifying A/C Compressor Clutch Relay (Turbo)
G09631201Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
