INSPECTION PROCEDURE 7: A/C Outlet Air Temperature does not Increase: Notes

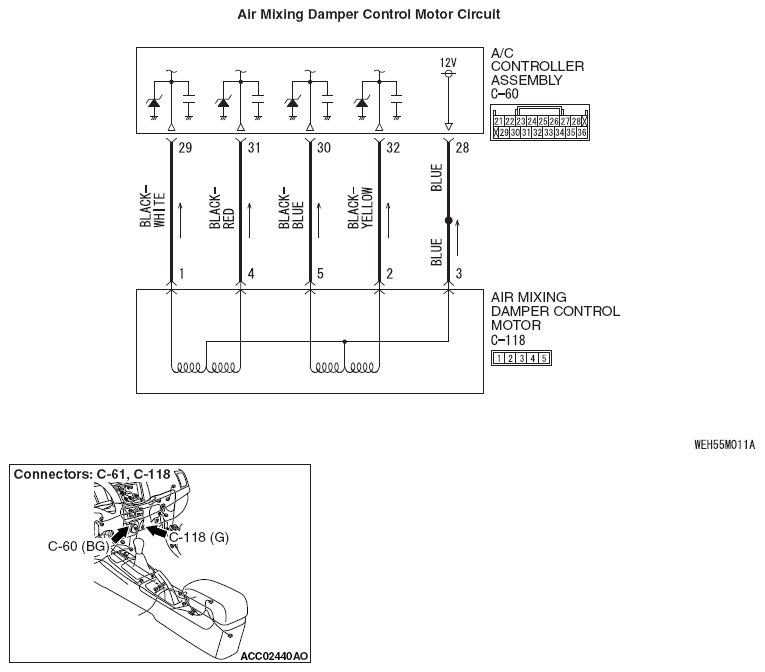

Fig 1: Air Mixing Damper Control Motor Circuit Diagram

G09631174

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
