INSPECTION PROCEDURE 3: The Compressor does not Work: Notes

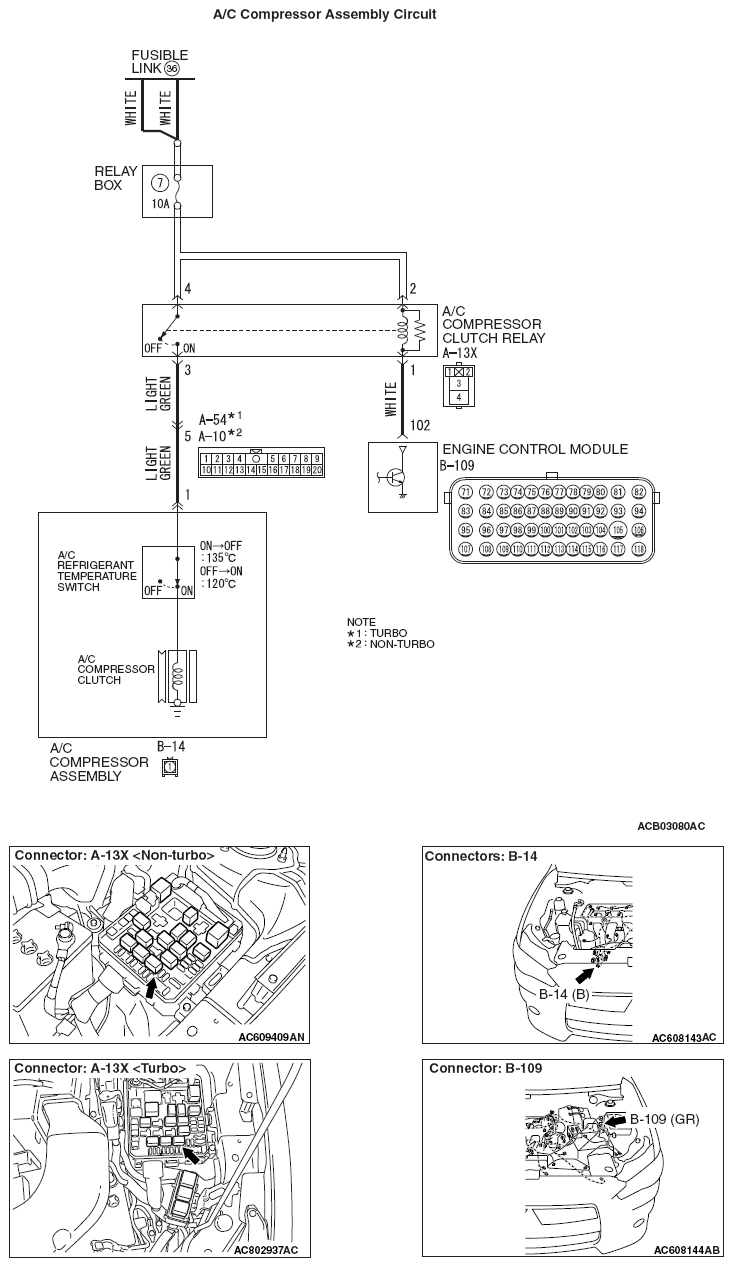

Fig 1: A/C Compressor Assembly Circuit Diagram

G09631157

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
