Removal And Installation: Notes

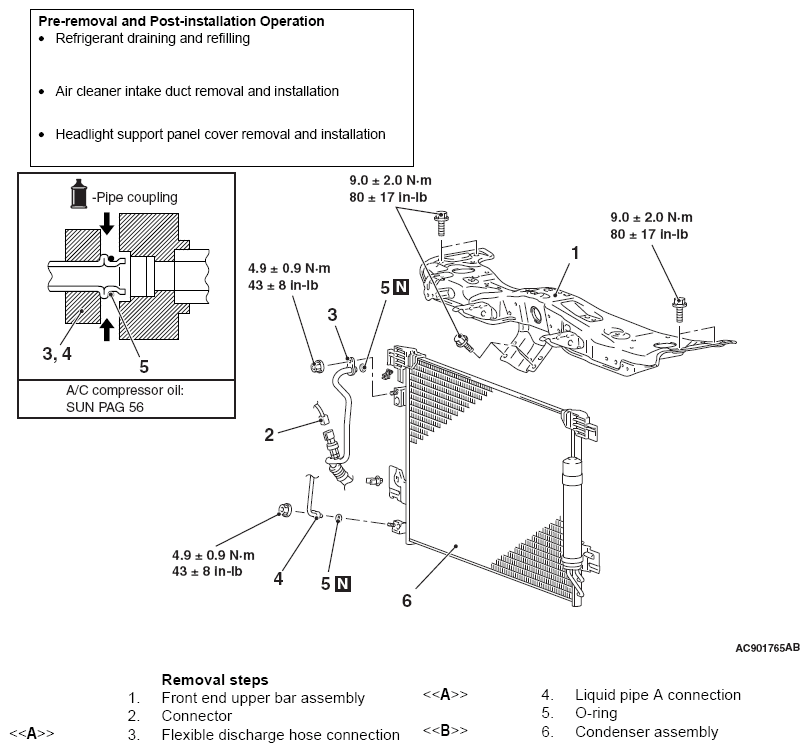

Fig 1: Removing/Installing Condenser Assembly Components With Torque Specifications
G09631229Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
