<< B >> Rotor Removal

CAUTION:
  • Be sure to use the guide (MB992623) when the side bearing puller (MB990810) is used to prevent the damage of A/C compressor.
  • If the threaded shaft of side bearing puller (MB990810) is turned than necessary, the rotor may be distorted. Therefore, turn the threaded shaft lightly only by hand without using any tools.

Rotor can be removed by hand, but if it is difficult to remove it, use the guide (MB992623) and the side bearing puller (MB990810) as shown.

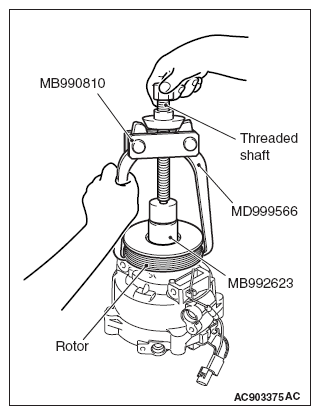

Fig 1: Removing Rotor
G09631220Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
