<< E >> MECHATRONIC Assembly Removal

WARNING: This page is about a different variant/trim than selected.

Remove the connector carefully.

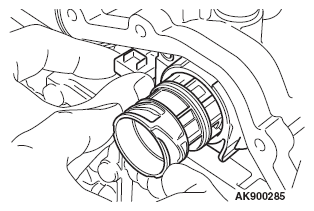

Fig 1: Removing Mechatronic Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the three bolts.

Fig 2: Identifying Transaxle Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Pull carefully at the connector to loose by Approx. 2 - 3 mm (0.08 - 0.12 inch).

Fig 3: Pulling Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the eleven bolts as shown in the illustration and remove the mechatronic assembly carefully.

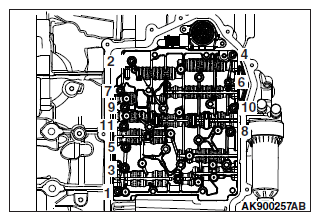

Fig 4: Mechatronic Assembly Mounting Bolts Loosening Sequence
