<< C >> Clutch Assembly Removal

WARNING: This page is about a different variant/trim than selected.
  1. Align the four pins of the special tool, clutch remover & installer (MB992332), with the four holes of the clutch assembly to set the special tool, clutch remover & installer (MB992332), to the clutch assembly.
  2. Rotate the clutch assembly in the axial direction to insert the pins into all four clutch disks in the clutch assembly.
    NOTE: When the pins are inserted into all four clutch disks, the clutch assembly cannot easily be rotated in the axial direction.
    Fig 1: Rotating Clutch Assembly In Axial Direction
    G09626032Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Rotate the clutch assembly counterclockwise six to seven times to loosen the clutch assembly.

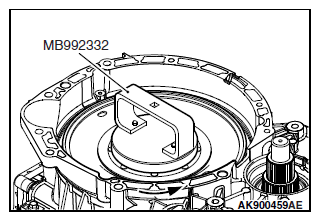

    Fig 2: Rotating Clutch Assembly Counterclockwise
    G09626033Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • When lifting the clutch assembly, the tool must not hook the clutch disk.
    • The clutch assembly might possibly have the needle bearing. Pay attention to it.
    • Carefully handle the clutch assembly to place it on the clean place.
  4. Lift the clutch assembly in the vertical direction to remove the clutch assembly from the transaxle assembly.

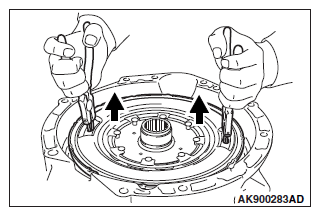

    Fig 3: Removing Clutch Assembly From Transaxle Assembly
    G09626034Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
