>> I << Transaxle Case Oil Seal (LH) Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply the transaxle oil to the special tool oil seal guide (MB992311).

    Insert the special tool oil seal guide (MB992311).

    NOTE: Do not use special tool oil seal guide (MB992311) without first removing the snap ring from the output shaft.

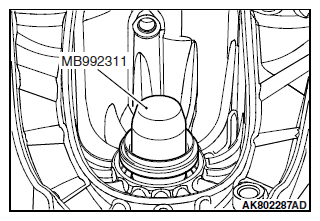

    Fig 1: Identifying Special Tool Oil Seal Guide (MB992311)
    G09626059Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Use special tool oil seal installer (MB992310) to install the oil seal to the transaxle.

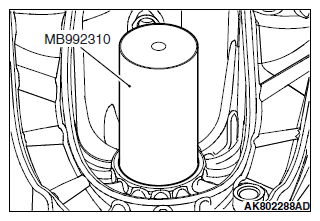

    Fig 2: Identifying Special Tool Oil Seal Installer (MB992310)
    G09626060Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
