>> H << Seal Cover Bracket/Seal Cover Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the seal cover to the following special tool.
    • Seal cover guide A (MB992324)
    • Seal cover guide B (MB992325)
      Fig 1: Installing Seal Cover Bracket/Seal Cover
      G09626054Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Remove the special tool, Seal Cover Guide A (MB992324), from Seal Cover Guide B (MB992325).
    Fig 2: Identifying Seal Cover Guide B (MB992325)
    G09626055Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Install the seal cover to the transaxle. Remove the special tool, Seal Cover Guide B (MB992325).
    Fig 3: Identifying Seal Cover Guide B (MB992325)
    G09626056Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Use special tool Seal cover installer (MB992323) to install the seal cover to the transaxle.

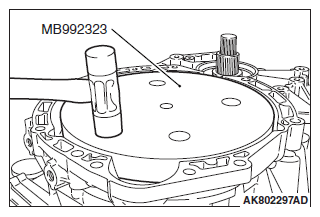

    Fig 4: Installing Seal Cover To Transaxle Using Special Tool Seal Cover Installer (MB992323)
    G09626057Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Install the seal cover bracket.

    Confirm that it is not shaky.

  6. Tighten the seal cover bracket mounting bolt to the specified torque.

    Tightening torque: 10 ± 1 N.m (89 ± 8 in-lb)

    Fig 5: Identifying Seal Cover Bracket
    G06471564Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
