>> C << Gasket A/Gasket C/MECHATRONIC Assembly Installation

WARNING: This page is about a different variant/trim than selected.

As shown in the illustration, fix the gasket to the transaxle case by pushing the gasket at the area to which the gasket dowel pin is inserted.

Fig 1: Fixing Gasket To Transaxle Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Pushing Gasket
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the mechatronic assembly carefully and tighten the mechatronic assembly mounting bolts to the specified torque in the order of number shown in the illustration.
Tightening torque: 5.0 ± 1.0 N.m (44 ± 8 in-lb)
Tighten again the mechatronic assembly mounting bolts to the specified torque in the order of number shown in the illustration.
Tightening torque: 10 ± 1.5 N.m (89 ± 8 in-lb)

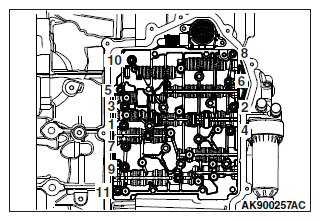

Fig 3: Mechatronic Assembly Bolts Tightening Sequence
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten the bolts to the specified torque.
Tightening torque: 6.0 ± 1.0 N.m (53 ± 8 in-lb)

Fig 4: Identifying Transaxle Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
