Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

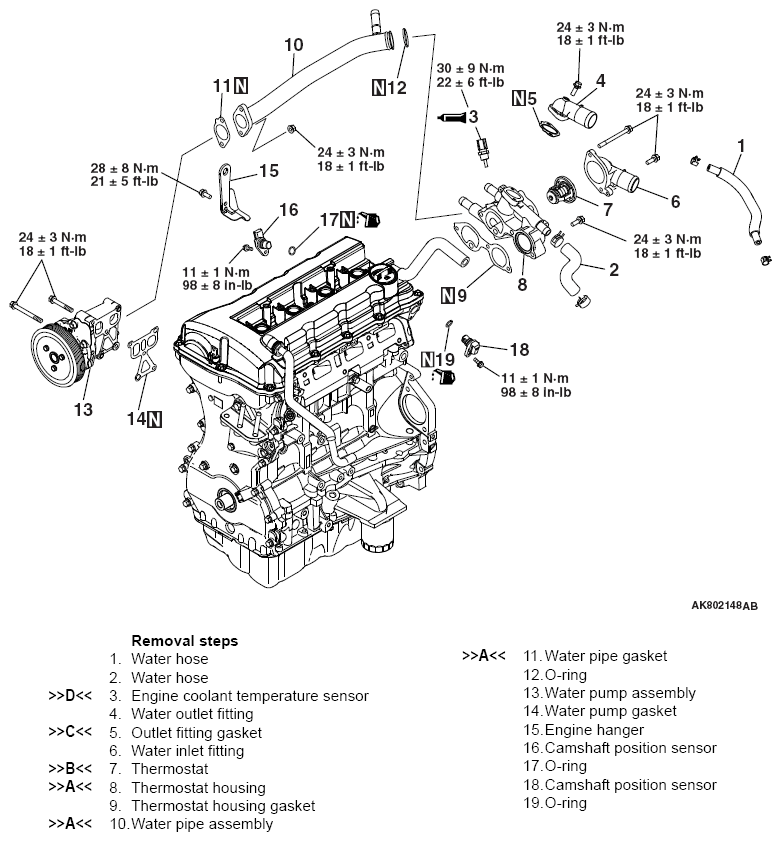

Fig 1: Water Hose And Pipe Components With Torque Specifications
G09619808Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
