Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

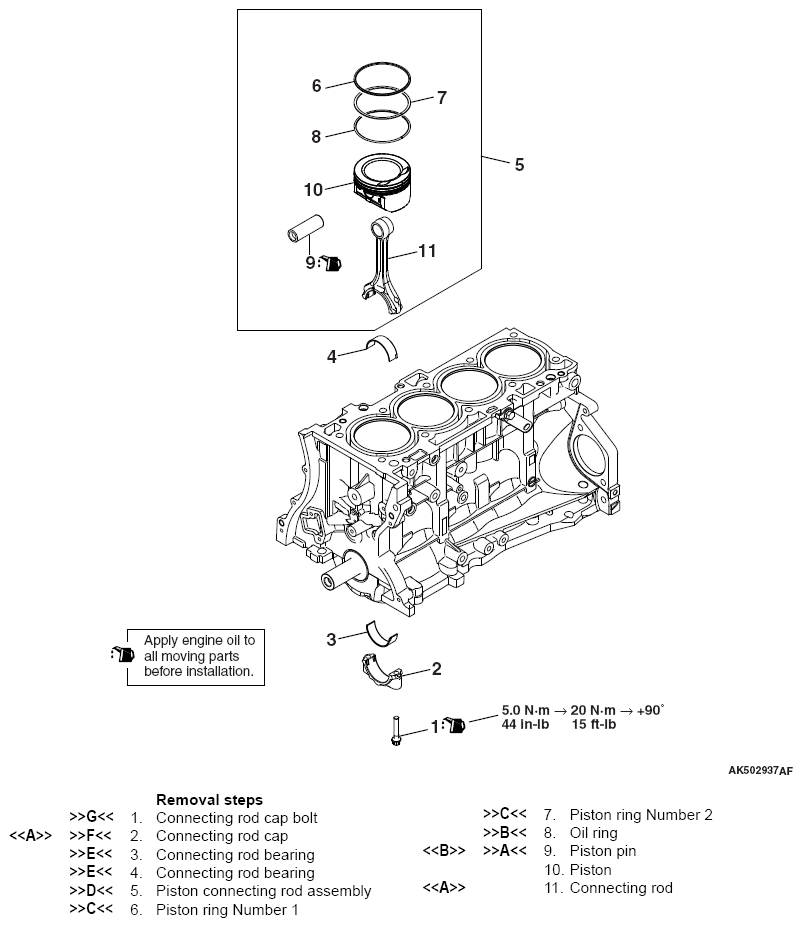

Fig 1: Piston And Connecting Rod Components With Torque Specifications
G09619907Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
