>> B << Camshaft/Bearing/Thrust Camshaft Bearing Cap/Camshaft Bearing Cap/Oil Feeding Camshaft Bearing Cap/Front Camshaft Bearing Cap Installation

WARNING: This page is about a different variant/trim than selected.
  1. When replacing a camshaft bearing, select a bearing with the size corresponding to the identification mark in the table below.
  2. Install camshaft bearings on the cylinder head.
    Camshaft Camshaft bearing
    Identification mark Journal diameter mm (in) Identification mark
    1 40.000 - 40.008 (1.5748 - 1.5751) 1
    2 40.008 - 40.016 (1.5751 - 1.5754) 2
    3 40.016 - 40.024 (1.5754 - 1.5757) 3
    Fig 1: Identifying Identification Mark On Camshaft
    G05425891Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. The identification mark of the camshaft bearing is painted at the illustrated position.
    Fig 2: Identifying Identification Mark Of Camshaft Bearing
    G05392574Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Set the dowel pins of the camshaft at the illustrated positions.
    Fig 3: Identifying Dowel Pins Position Of Camshaft
    G05425893Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Camshaft bearing caps Number 1 to Number 4 are of the same shape. Install them upon checking the identification mark so as not to misidentify cap Number and to confuse the intake side with the exhaust side.

    Identification mark (stamped on front and Number 1 to Number 4 bearing caps)

    I: Intake side

    E: Exhaust side

  6. Tighten each camshaft bearing cap mounting bolt to the specified tightening torque of 12 ± 1 N.m (107 ± 1 in-lb) in the order of number shown in the figure in two or three steps.

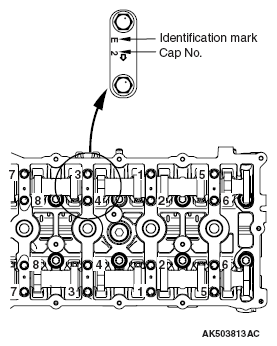

    Fig 4: Camshaft Bearing Cap Mounting Bolt Tightening Sequence
    G05425894Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  7. Tighten each front camshaft bearing cap mounting bolt to the temporarily torque of 17 ± 3 N.m (14 ± 2 ft-lb) in the order of number shown (1).
  8. Tighten each front camshaft bearing cap mounting bolt to the specified tightening torque of 30 ± 2 N.m (22 ± 1 ft-lb) in the order of number shown (2).
    Fig 5: Front Camshaft Bearing Cap Mounting Bolt Tightening Sequence
    G05425895Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
