Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

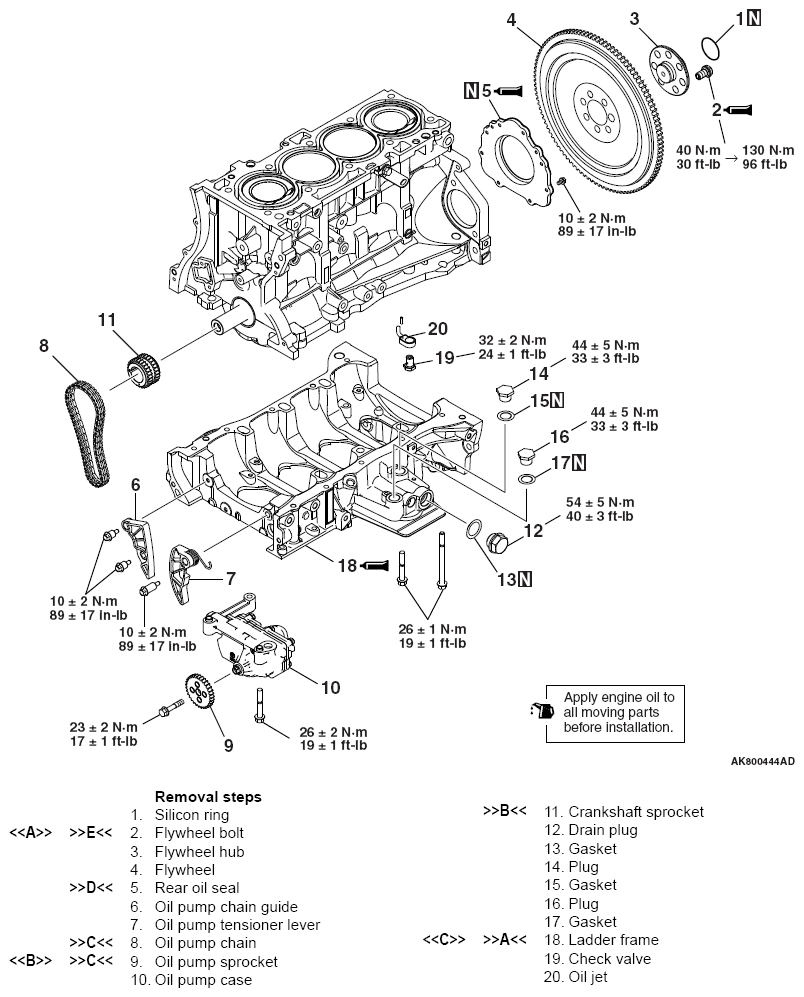

Fig 1: Oil Pump Chain, Flywheel And Rear Oil Seal Cover With Torque Specifications
G09619525Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
