<< C >> Timing Chain Case Removal

If the timing chain case is difficult to remove, insert a hammer handle as shown in the illustration and lightly pry it.

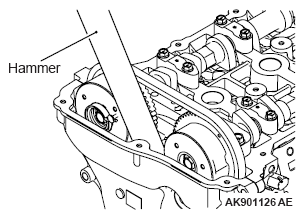

Fig 1: Inserting Hammer Handle Inside Timing Chain Case

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
