Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

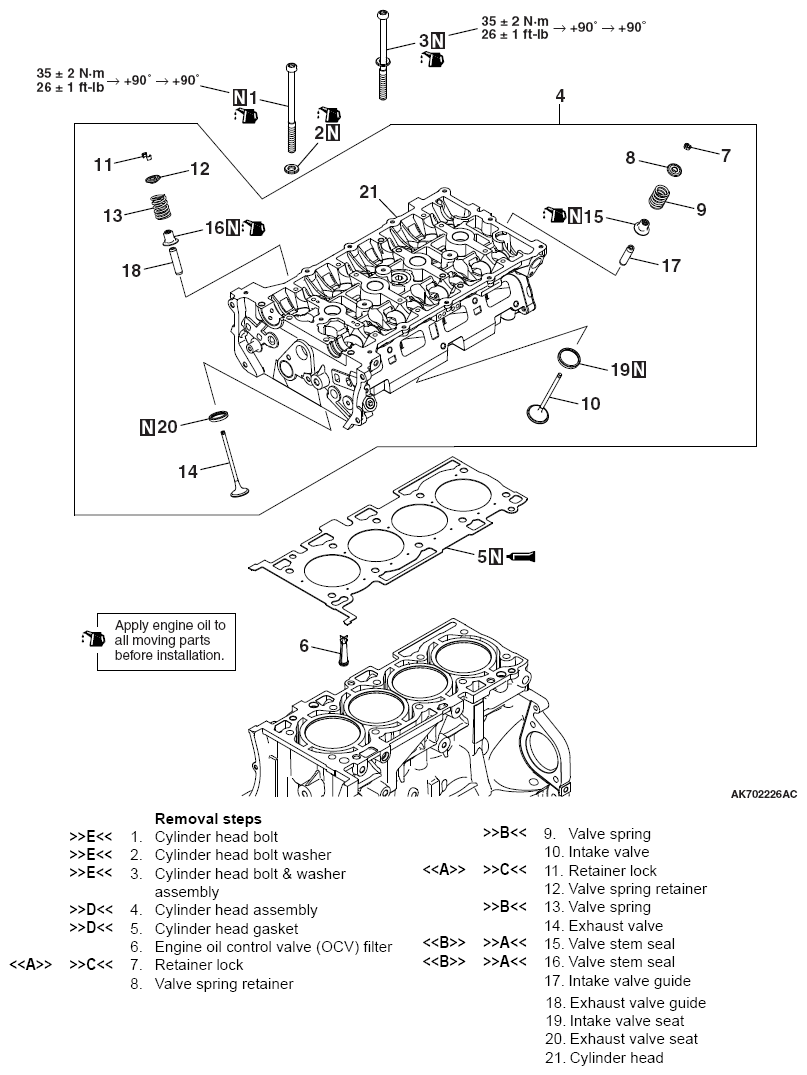

Fig 1: Cylinder Head, Valves And Components With Torque Specifications
G09619503Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
