>> B << Camshaft/Bearing/Thrust Camshaft Bearing Cap/Camshaft Bearing Cap/Oil Feeding Camshaft Bearing Cap/Front Camshaft Bearing Cap Installation

WARNING: This page is about a different variant/trim than selected.

When replacing a camshaft bearing, select a bearing with the size corresponding to the identification mark in the table below.

Install camshaft bearings on the cylinder head.

Fig 1: Identifying Camshaft Bearing Identification Mark

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The identification mark of the camshaft bearing is stamped at the illustrated position.

Fig 2: Identifying Camshaft Bearing Identification Mark And Oil Hole
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the dowel pins of the camshaft at the illustrated positions.

Fig 3: Identifying Camshaft Dowel Pins
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

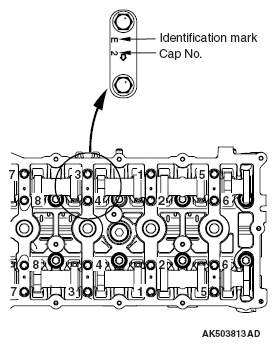

Install them upon checking the identification mark so as not to misidentify cap No. and to confuse the intake side with the exhaust side.
Identification mark
1. I: Intake side
2. E: Exhaust side
Tighten each camshaft bearing cap mounting bolt to the specified torque in the order of number shown in the figure in two or three steps.
Specified torque: 12 ± 1 N.m (107 ± 8 in-lb)

Fig 4: Camshaft Bearing Cap Mounting Bolt Tightening Sequence
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten each front camshaft bearing cap mounting bolt to the temporarily torque of 17 ± 3 N.m (14 ± 2 ft-lb) in the order shown (1).
Tighten each front camshaft bearing cap mounting bolt to the specified torque in the order shown (2).
Specified torque: 30 ± 2 N.m (22 ± 1 ft-lb)

Fig 5: Camshaft Bearing Cap Mounting Bolt Tightening Sequence
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
