Section 29 (Twin Clutch SPORTRONIC Shift Transmission (TC-SST) - With Diagnostics - Lancer (3 Of 6))
>>
DTC U0100: Engine Time-out Error
>>
LOGIC FLOW CHARTS (Monitor Sequence)
LOGIC FLOW CHARTS (Monitor Sequence)
WARNING:
This page is about a different variant/trim than selected.

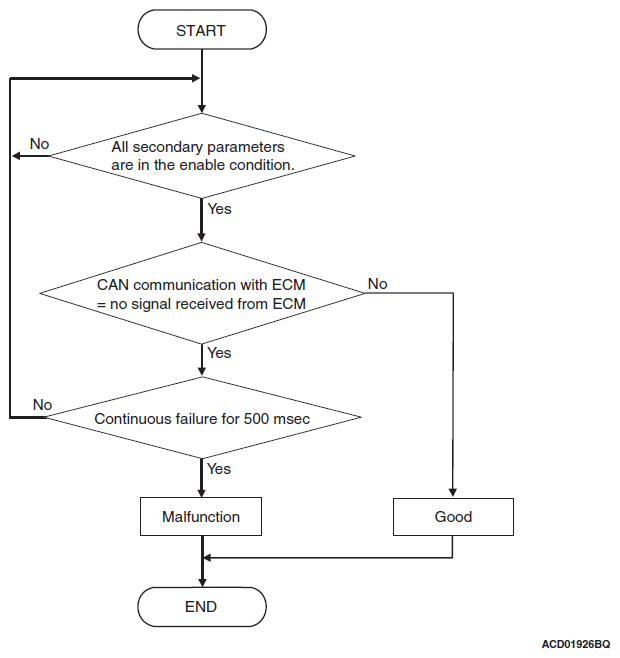

Fig 1: Monitor Sequence Logic Flow Charts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
