LOGIC FLOW CHARTS (Monitor Sequence) < Functional check - Shift fork 4 requested but shift fork 2 movement >

WARNING: This page is about a different variant/trim than selected.

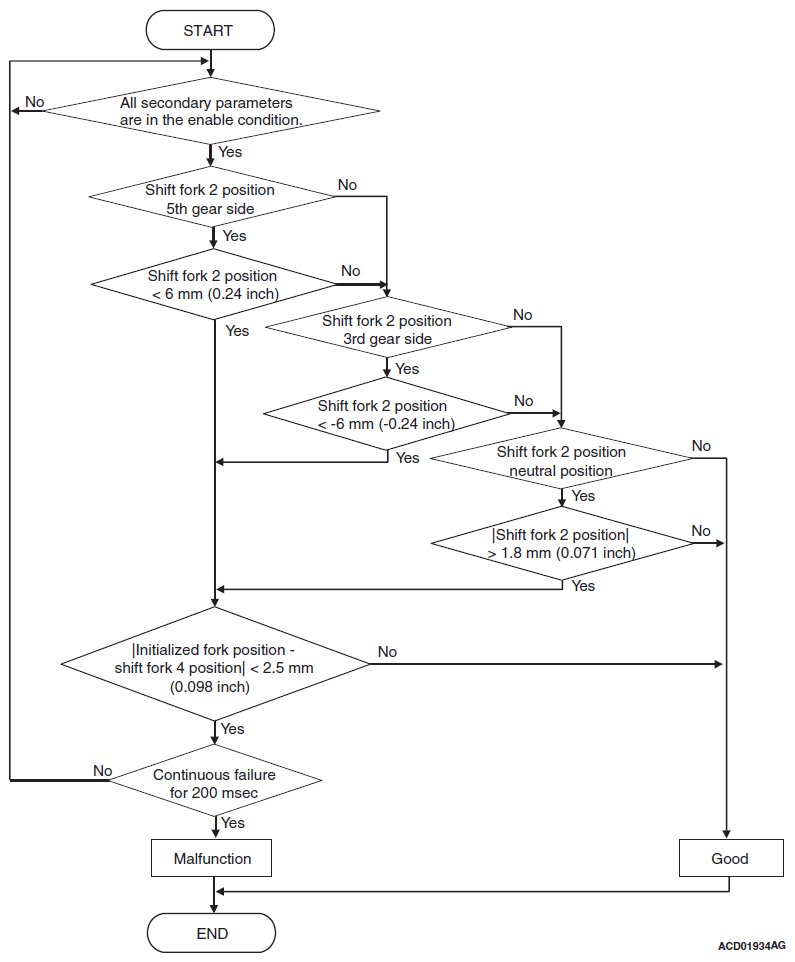

Fig 1: Monitor Sequence Logic Flow Charts (Check - Neutral)
G09625854Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
