Differential Carrier Oil Seal Replacement

WARNING: This page is about a different variant/trim than selected.

Required Special Tools:

  1. Remove the driveshaft. (Refer to DRIVESHAFT ASSEMBLY  .)
  2. Remove the mechanical type limited slip differential carrier oil seal.
  3. Use special tools MB990938 and MB991115 to press-fit a new oil seal.
  4. Apply multi-purpose grease to the oil seal lip and driveshaft oil seal seating area.
  5. Replace the driveshaft circlip with a new one, and install the driveshaft to the differential carrier. (Refer to DRIVESHAFT ASSEMBLY  .)

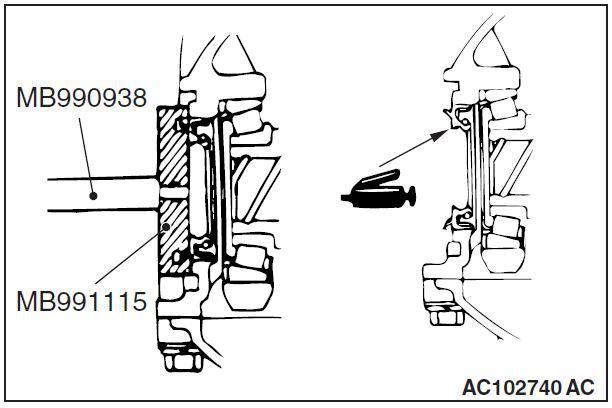

    Fig 1: Pressing Oil Seal Using Special Tools MB990938 And MB991115
    G09626640Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
