LSD Case Assembly Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

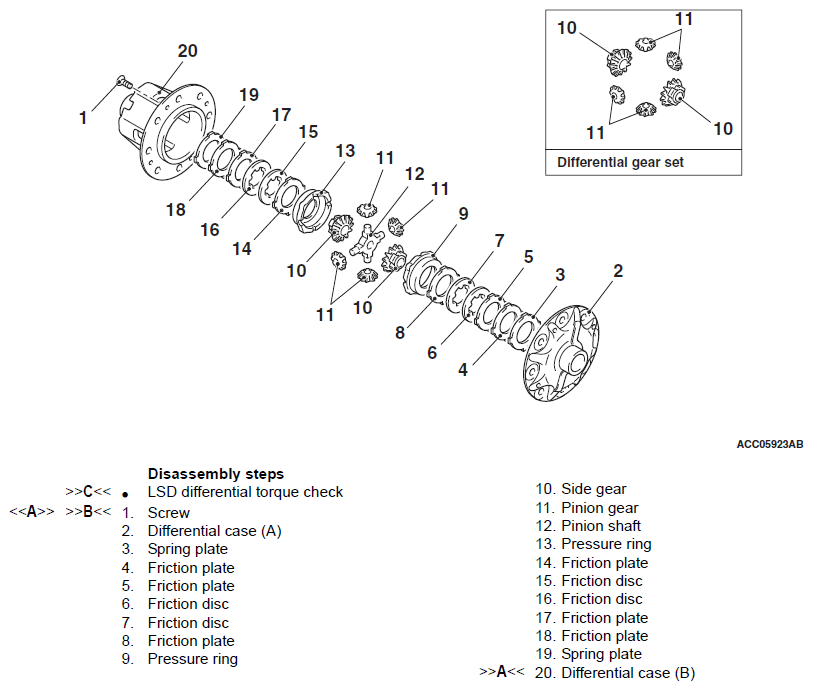

Fig 1: Exploded View Of LSD Case Assembly
G09626759Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
