Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When the LDW-ECU is replaced, always initialize the LDW camera (Refer to ON-VEHICLE SERVICE ) and adjust the LDW camera image (Refer to HOW TO RESET THE LDW CAMERA INITIALIZATION DATA ).
Before and after you initialize the LDW camera (Refer to ON-VEHICLE SERVICE ) or adjust the LDW camera image (Refer to HOW TO RESET THE LDW CAMERA INITIALIZATION DATA ), check the LDW camera mounted surface on the windshield for scratch, cracks, contamination or drain drops.

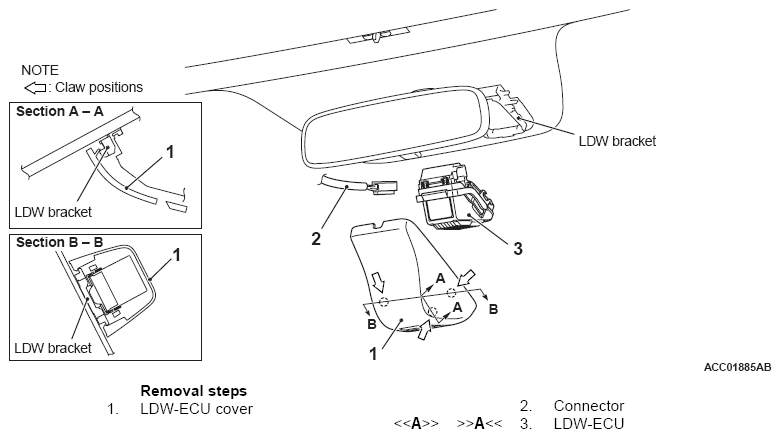

Fig 1: Removing/Installing LDW-ECU With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
