< Vehicles with discharge headlight >

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

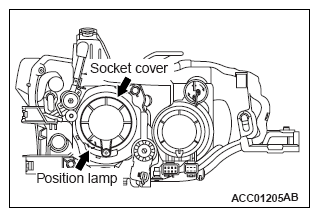

Fig 1: Locating Position Lamp Position
G09666986Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Twist the socket anticlockwise to remove.
  2. Disconnect the bulb from the socket.

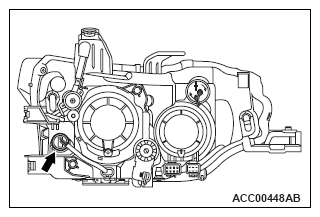

    Fig 2: Locating Bulb From Socket
    G09666987Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
