Halogen Headlight Bulb (Low-Beam/High-Beam) Replacement

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Twist the socket cover anticlockwise to remove.
    CAUTION: Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.
  2. Twist the bulb anticlockwise to remove.

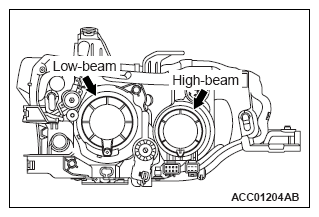

    Fig 1: Locating Halogen Headlight Bulb Socket Cover
    G09666984Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
