Front Side-Marker Light Bulb Replacement

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Twist the socket cover anticlockwise to remove.
  2. Pull out the socket.
  3. Disconnect the bulb from the socket.

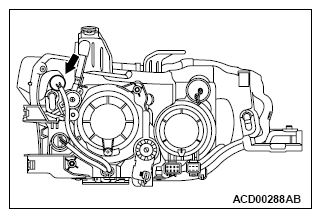

    Fig 1: Locating Front Side-Marker Light Bulb
    G09666989Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
