Discharge Headlight Bulb (Low-Beam) Replacement

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Twist the socket cover anticlockwise to remove.
  2. Twist the socket anticlockwise to disconnect it from the bulb.
    CAUTION: Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.
  3. Raise the fastener securing the bulb, and then remove the bulb.

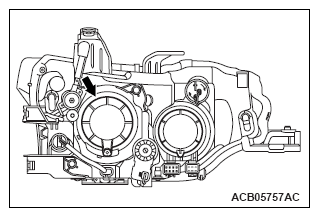

    Fig 1: Locating Headlight Bulb Socket Cover (Low-Beam)
    G09666985Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
