Power Liftgate Operating Current Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power liftgate fuse, and connect the circuit tester as shown in the illustration.
  2. Open and close the power liftgate, and measure the current during operation.

    Standard value: 11 A or less [Power supply voltage 14.5 ± 0.5 V, 25°C (77°F)]

    NOTE: If the power supply voltage does not meet the standard value, check and repair the generator and the battery. Then carry out this check again.
  3. If the value is outside the standard value, adjust the power liftgate (refer to SPECIAL TOOLS ).

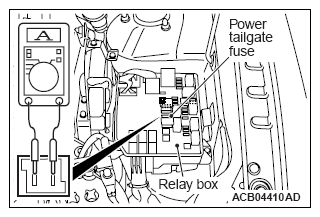

    Fig 1: Checking Power Liftgate Operating Current
    G09666207Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
