Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

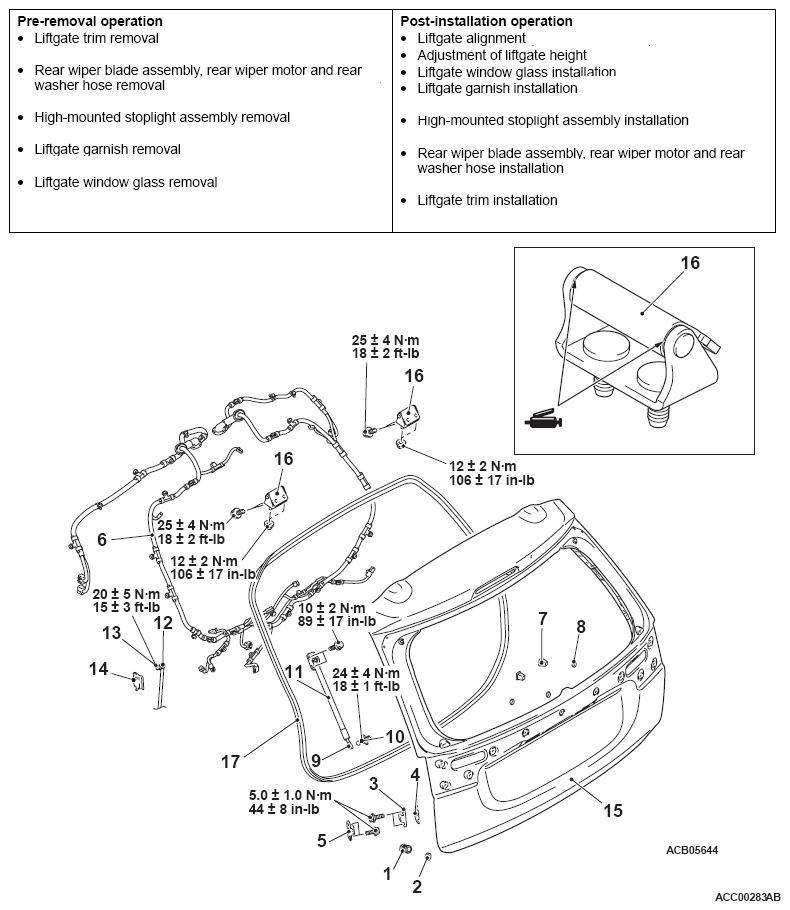

Fig 1: Removing/Installing Liftgate With Torque Specification
G09666208Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

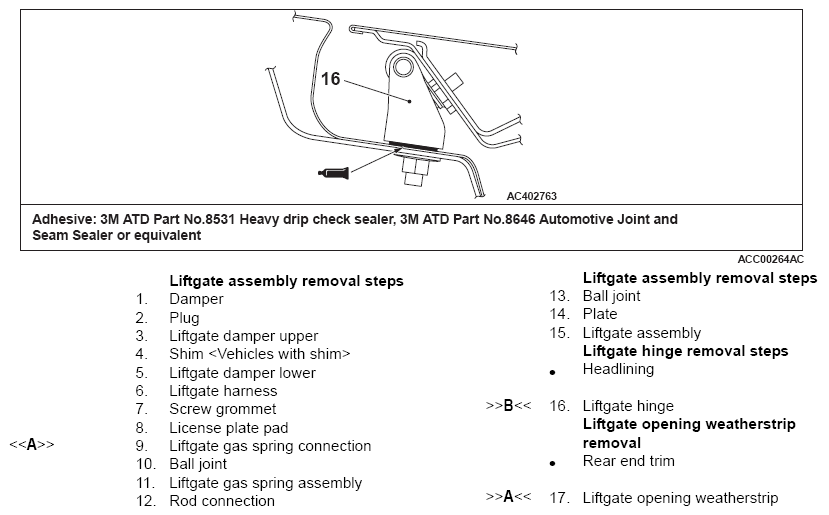

Fig 2: Removing Liftgate Gas Spring Assembly
G09666209Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
