Section 82 (Liftgate - Vehicles With Power Liftgate - With Diagnostics)
>>
Liftgate Handle And Latch
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
WARNING:
This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

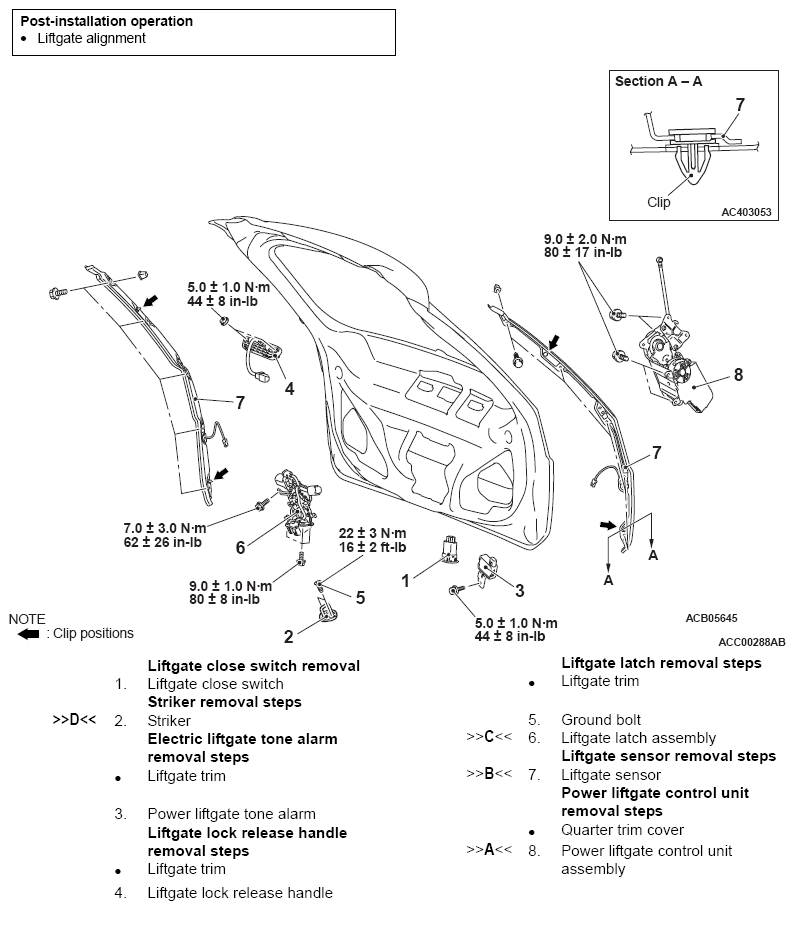

Fig 1: Removing/Installing Liftgate Handle And Latch With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Power Liftgate Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

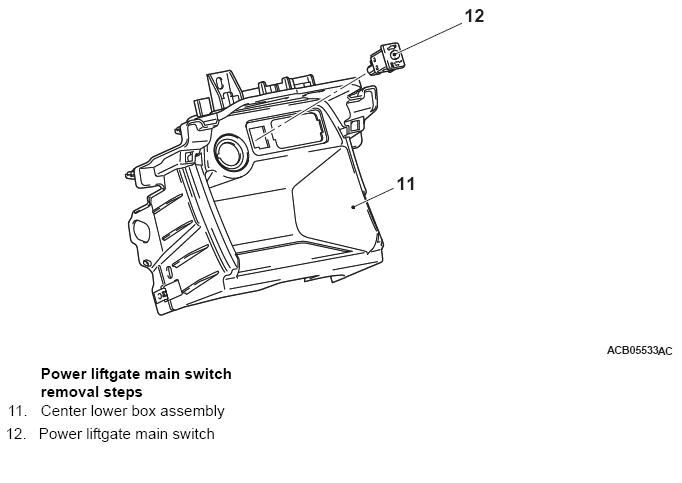

Fig 3: Identifying Power Liftgate Main Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
