Neutral Switch Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: After checking the neutral switch, operate the liftgate latch as follows to install it. This avoids damage to the liftgate latch switch.
  1. Connect the positive battery terminal to the liftgate latch terminal No.1, and the negative battery terminal to the liftgate latch terminal No.9 for approximately one second.
  2. Connect the positive battery terminal to the liftgate latch terminal No.9, and the negative battery terminal to the liftgate latch terminal No.1 for approximately one second.
Lever position Terminal number Normal value
ON 7 - 8 Continuity exists (2 Ω or less).
OFF 7 - 8 No continuity

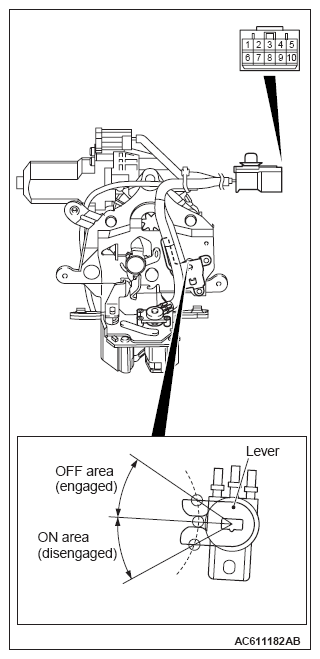

Fig 1: Identifying Neutral Switch Terminal
G09666224Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
