Latch Motor Operation Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Battery connecting terminal number Gear operation
1 (negative battery terminal) - 9 (positive battery terminal) Engaged → Disengaged
1 (positive battery terminal) - 9 (negative battery terminal) Disengaged → Engaged

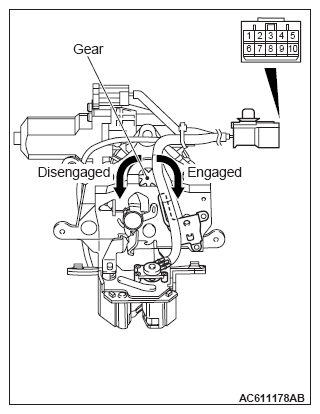

Fig 1: Identifying Liftgate Latch Connector Terminal
G09666220Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
