Half Latch Switch Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Claw position Terminal number Normal value
ON 2 - 3 Continuity exists (2 Ω or less).
OFF 2 - 3 No continuity

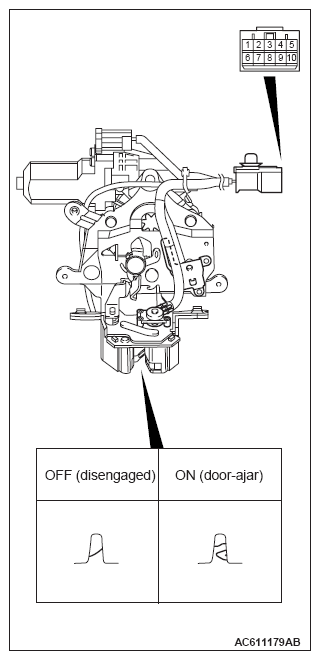

Fig 1: Identifying Half Latch Switch Connector Terminal
G09666221Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
