WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Claw position
Terminal number
Normal value
ON
2 - 4
Continuity exists (2 Ω or less).
OFF
2 - 4
No continuity

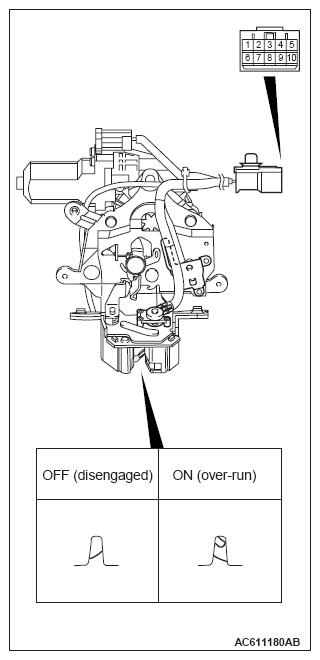

Fig 1: Identifying Full Latch Switch Connector Terminal
