Door-Ajar Switch Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Claw position Terminal number Normal value
ON 5 - 10 Continuity exists (2 Ω or less).
OFF 5 - 10 No continuity

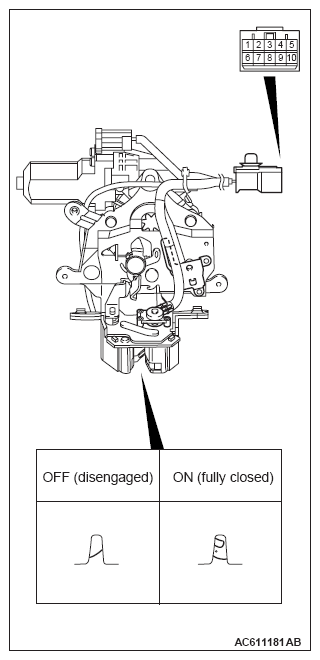

Fig 1: Identifying Door-Ajar Switch Terminal
G09666223Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
