Removal And Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If the combination meter needs to be replaced, the current driving distance and elapsed days must be entered into the meter after the replacement in order to be used for service reminder function. Therefore, read "Integrated mileage for reminder," "Integrated days for reminder," "Mileage until Extra reminder," "Months until Extra reminder," and "Current schedule" from the meter before the replacement using the special function of scan tool, and note them. For the operation method of scan tool, refer to ON-VEHICLE SERVICE . If "Integrated mileage for reminder" or "Integrated days for reminder" cannot be read from the meter using scan tool, use the following method.

As for the driving distance for check warning, use the driving distance displayed on the multi information display.
As for the elapsed days for check warning, calculate the number of elapsed days from the delivery date to the customer (service reminder function start date) and current date.

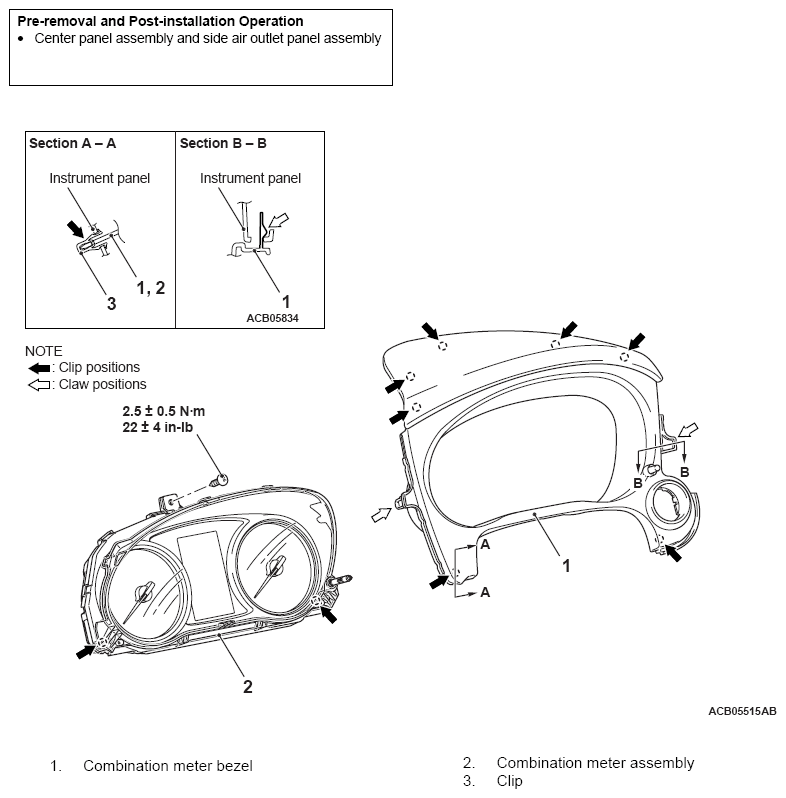

Fig 1: Removing/Installing Combination Meter Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
