Removal And Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When the ACC/FCM-ECU is replaced, after turning the ignition switch "ON" or "LOCK" (OFF), always carry out the calibration of radar at one time (Refer to RADAR CALIBRATION  ).

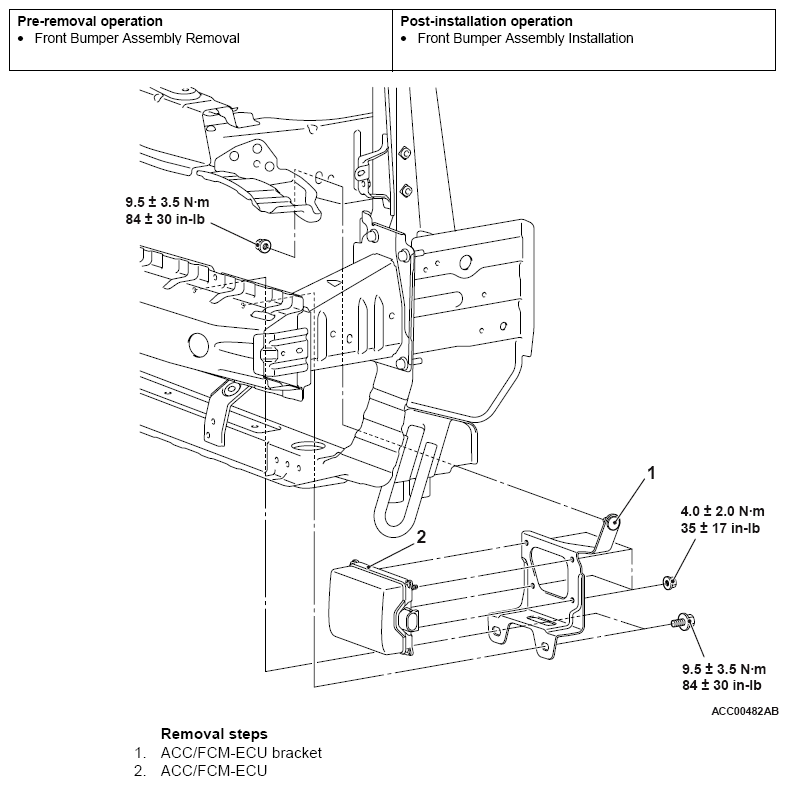

Fig 1: Removing/Installing ACC/FCM-ECU With Torque Specifications
G09664827Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
