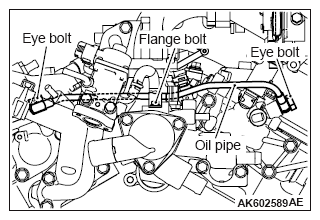

>> G << Oil Pipe Installation
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
- Temporarily tighten the eye bolts on the both ends of the oil pipe.
- Temporarily tighten the flange bolt on the clamp.
- Tighten the eye bolts on the both ends of the oil pipe to the specified torque.
- Tighten the flange bolt on the clamp to the specified torque.
