>> E << Thermostat Housing Gasket Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Install the thermostat housing gasket so that the tab is positioned as shown in the illustration.

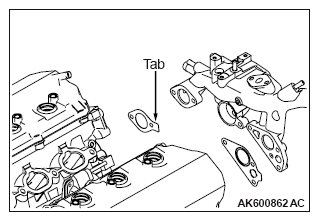

Fig 1: Identifying Thermostat Housing Tab
G09663809
