<< A >> Auto-TENSIONER Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper tightening bolt of the auto-tensioner.
    CAUTION: The auto-tensioner rotates centering on the flange bolt due to the rod thrust, so please make sure your finger is not trapped.
  2. Slowly loosen the (lower) tightening bolts of the auto-tensioner. Remove the auto-tensioner rod from the tensioner arm and tilt the auto-tensioner to the stopper position.
  3. Remove the lower tightening bolt of the auto-tensioner.

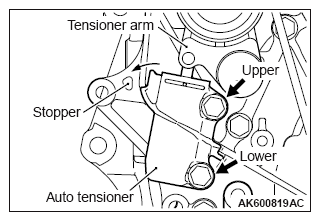

    Fig 1: Identifying Upper & Lower Auto-Tensioner Bolts
    G09663774
