>> C << Idler Pulley Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Because of the shallow hexagon hole of the hexagon socket head bolt, firmly insert the tool and carefully work not to damage the hexagon hole.

Install the idler pulley using a hexagon wrench with 8 mm (0.31 inch) width across flats.

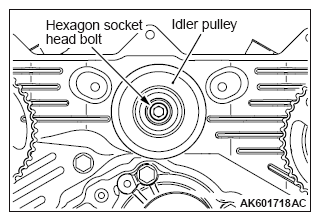

Fig 1: Identifying Idler Pulley And Hexagon Socket Head Bolt
G09663780
