<< C >> Camshaft Position Sensing Cylinder Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Install the camshaft sprocket and the camshaft sprocket bolt to the camshaft. Using the special tools MB990767 and MD998719, prevent the camshaft position sensing cylinder from rotating and remove it.

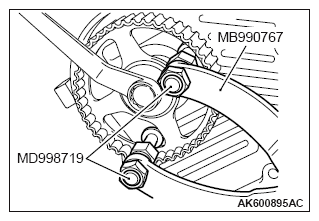

Fig 1: Rotating Camshaft Sprocket Bolt While Holding Camshaft From Turning
G09663821
