Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

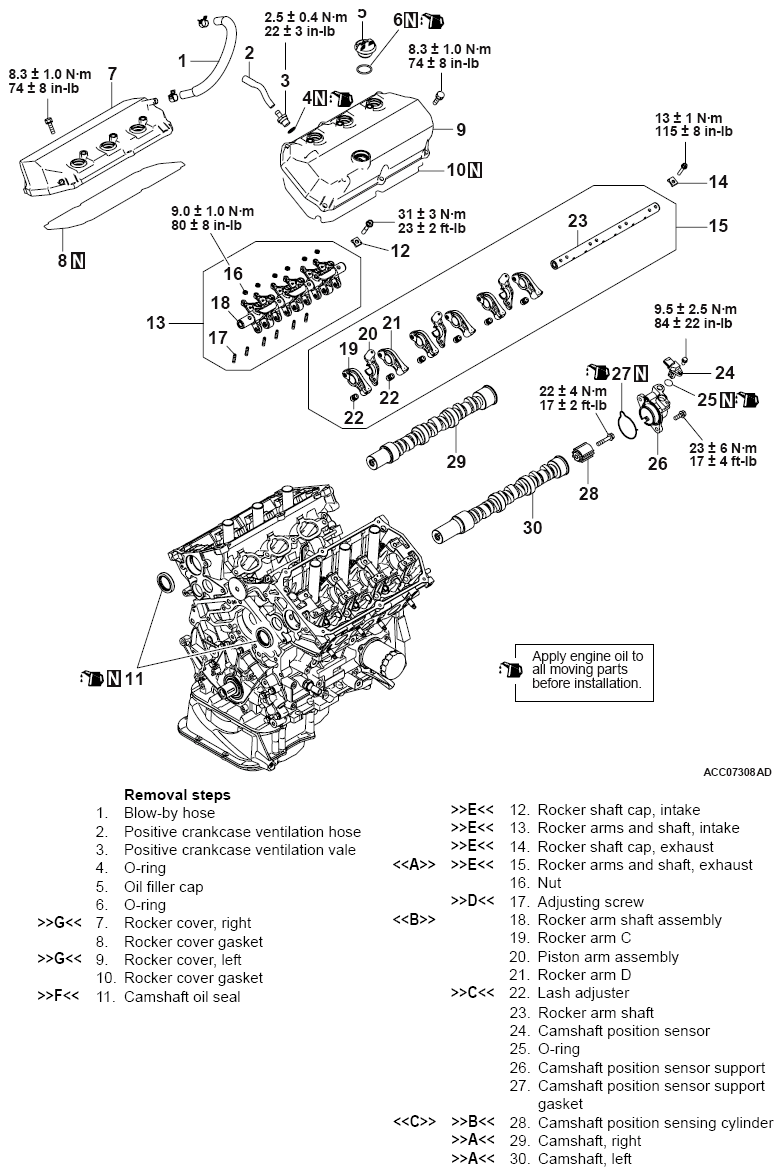

Fig 1: Rocker Cover And Camshaft Components With Torque Specification

Required Special Tools:

MD998443: Lash Adjuster Holder
MD998713: Camshaft Oil Seal Installer
MD998777: Camshaft Oil Seal Installer Adapter
MB990767: End Yoke Holder
MD998719: Pins
