>> E << Rocker Arms And Shaft/Rocker Shaft Cap Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. In accordance with the tags for the reinstallation, install the rocker arm and so on to the rocker arm shaft.

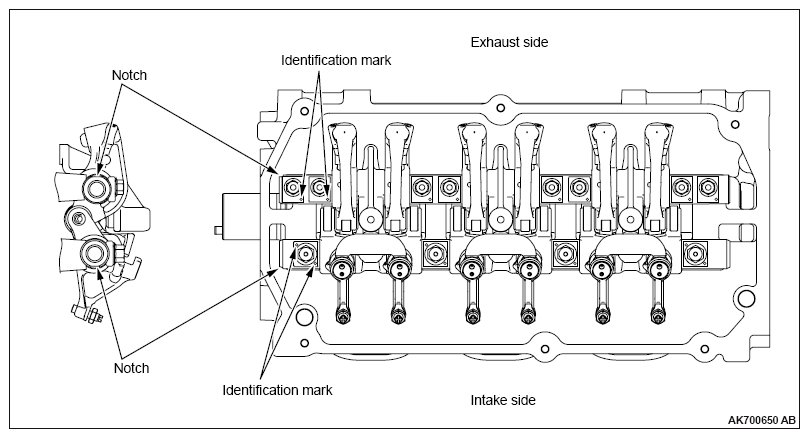

    Fig 1: Identifying Rocker Arms And Shaft/Rocker Shaft Cap Identification Mark
    G09663826
  2. Temporarily install the intake rocker arms and shaft.
    NOTE: Place the notch on the end face in the direction shown in the illustration.
  3. Temporarily install the exhaust rocker arms shaft.
    NOTE: Place the notch on the end face in the direction shown in the illustration.
    NOTE: Install the rocker arm shaft with oil hole to the lower (cylinder head) side.
  4. Install the rocker shaft cap.
    NOTE: Pay attention to the installation direction of the rocker shaft cap at the exhaust side.
  5. Confirm the each rocker arm and rocker arm shaft assembly are in position and then tighten to the specified torque.

    Tightening torque:

    Exhaust side (M6): 13 ± 1 N.m (115 ± 8 in-lb)

    Intake side (M8): 31 ± 3 N.m (23 ± 2 ft-lb)
