>> B << Camshaft Position Sensing Cylinder Installation
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
- Mate the groove on the camshaft rear end face properly with the protrusion of the camshaft position sensing cylinder so that the camshaft position sensing cylinder can be installed.

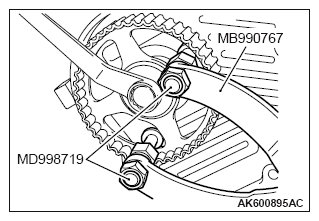

- Install the camshaft sprocket and the camshaft sprocket bolt to the camshaft. Using the special tools MB990767 and MD998719, prevent the camshaft position sensing cylinder from rotating and tighten it to the specified torque.
