Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

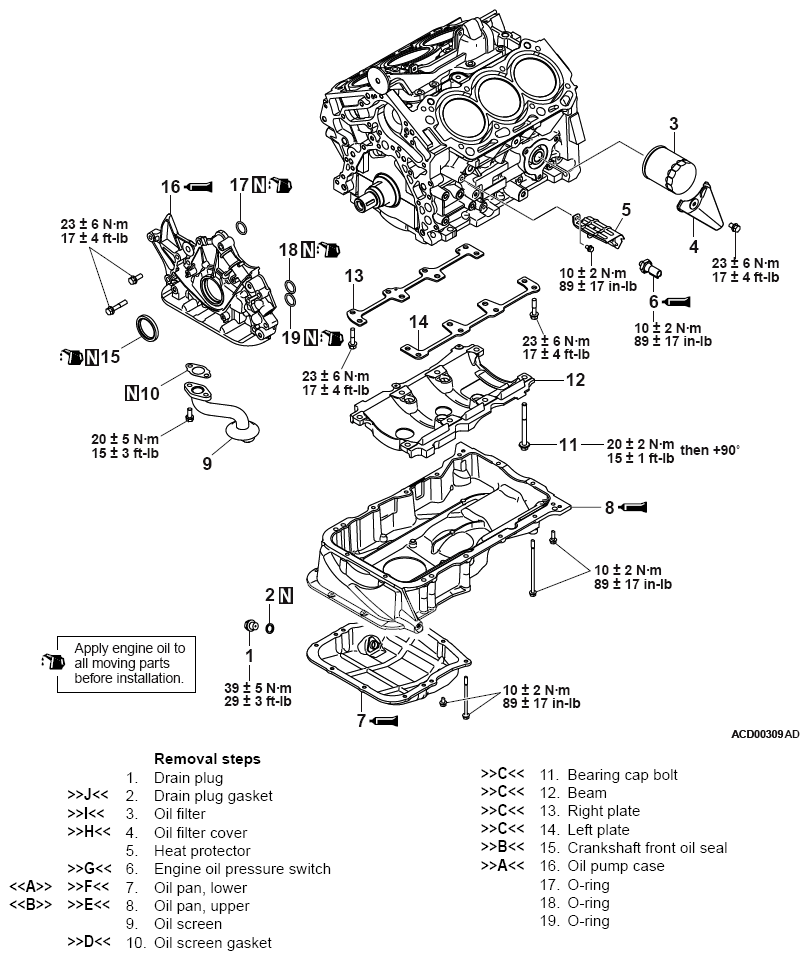

Fig 1: Oil Pan And Oil Pump Components With Torque Specifications

Required Special Tools:

MB991396: Oil Filter Wrench
MB991614: Angle Gauge
MD998382: Crankshaft Front Oil Seal Installer
MD998727: Oil Pan FIPG Cutter
