>> C << Exhaust Manifold Gasket Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Install the exhaust manifold gasket so that the identification mark is positioned as shown in the illustration.

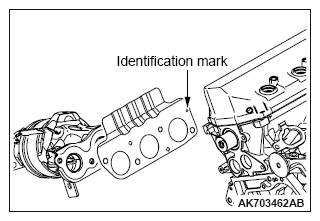

Fig 1: Identifying Identification Mark Exhaust Manifold Gasket
G09663817
