<< B >> Valve Stem Seal Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tool MB992085, nip the valve stem seal and remove it.

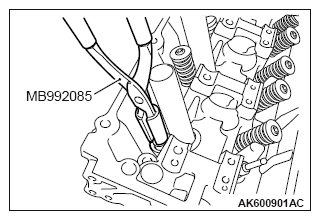

Fig 1: Pressing Valve Stem Seal Using Special Tool MB992085
G09663844
