Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

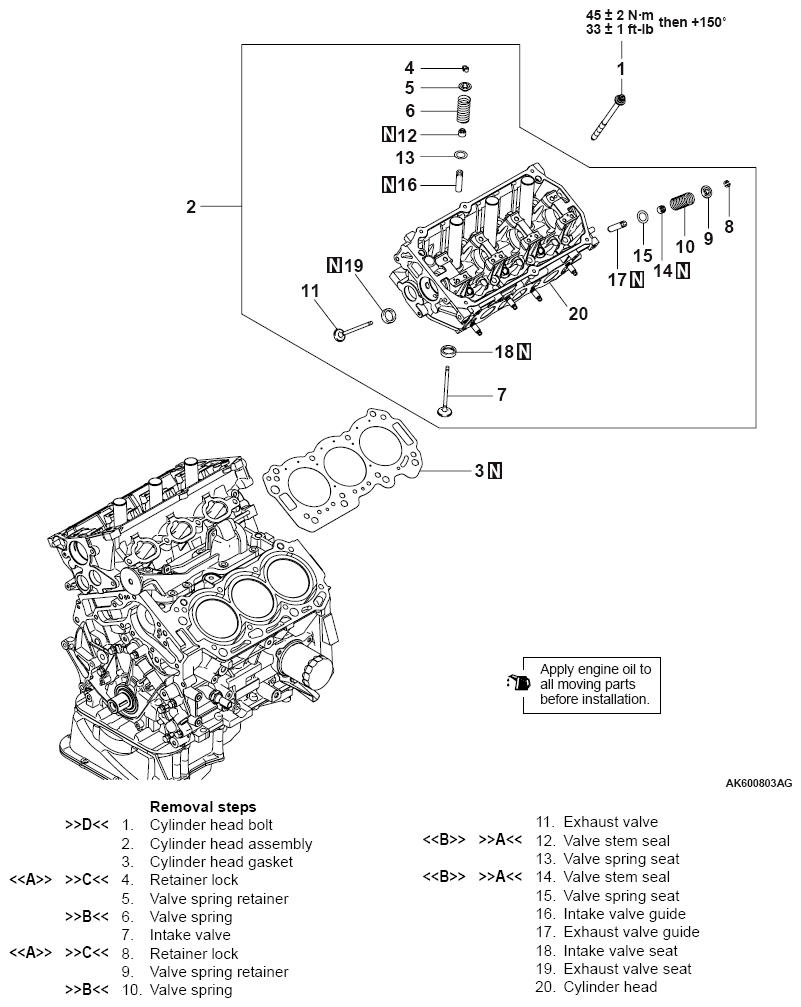

Fig 1: Exploded View Of Cylinder Head And Valves With Torque Specifications

Required Special Tools:

MB991614: Angle Gauge
MB992085: Valve Stem Seal Pliers
MB992182: Valve Stem Seal Installer
MD998735: Valve Spring Compressor
