>> D << Cylinder Head Bolt Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Attach the head bolt washer in the direction shown in the figure.

Tighten the bolts in the illustrated sequence two or three rounds.
Tightening torque: 45 ± 2 N.m (33 ± 1 ft-lb)

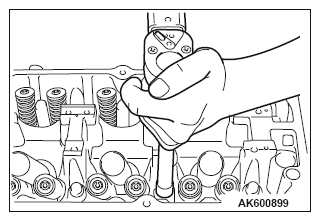

Fig 1: Installing Cylinder Head Bolt

Fig 2: Identifying Cylinder Head Bolt Tightening Sequence
CAUTION:
- When the tightening angle is smaller than the specified tightening angle, the appropriate tightening capacity cannot be secured.
- When the tightening angle is larger than the specified tightening angle, remove the bolt to start from the beginning again according to the procedure.
Using the special tool MB991614, tighten the cylinder head bolt another 150 degrees.

Fig 3: Tightening Cylinder Head Bolt Using Special Tool MB991614
