>> D << Crankshaft Bearing Lower Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

If the lower crankshaft bearing is replaced, select based on the identification mark of crankshaft (illustrated) and the table .

Crankshaft journal (Lower)	Crankshaft bearing
Identification mark	Identification mark
0	0
1	1
2	2
3	3
4	4

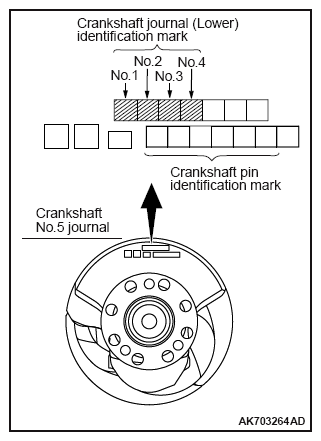

Fig 1: Identifying Lower Crankshaft Bearing Identification Mark

The lower crankshaft bearing has the identification mark on the location shown in the illustration.
Install the lower selected crankshaft bearing.

Fig 2: Identifying Lower Crankshaft Bearing Identification Mark
